ORB-SLAM3 AR Demo

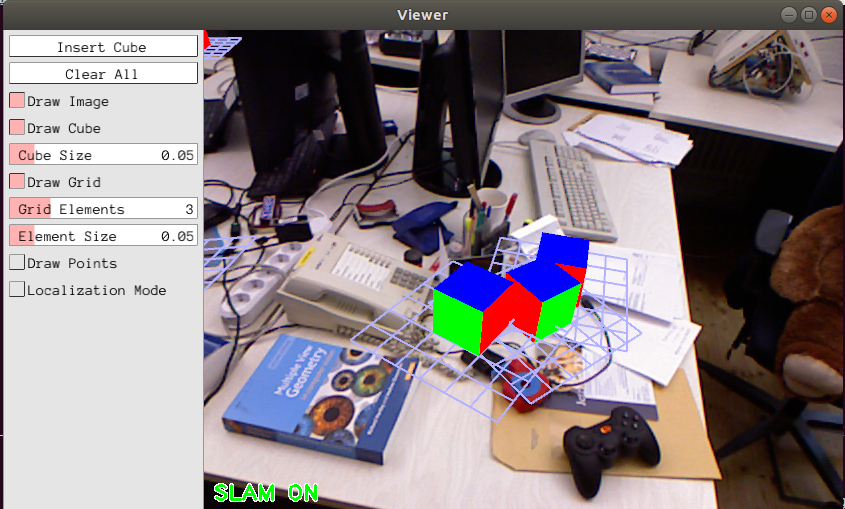

# ORB-SLAM3 AR Demo ## Monocular - Compile ORB-SLAM3 and make sure it can run in ROS ```sh cd [PROJECT] catkin_make ``` - Run ORB-SLAM3 MonoAR node ```sh $rosrun orb_slam3 MonoAR Vocabulary/ORBvoc.tx Examples/ROS/ORB_SLAM3/config/ros_tum.yaml /camera/image_raw:=/camera/rgb/image_color ``` - Play dataset For example, TUM1: ```sh rosbag play --clock rgbd_dataset_freiburg1_room.bag --hz=1 ``` - Insert virtual 3D object ## RGDB AR Demo - Source code: ```cpp #include #include #include #include #include <cv_bridge/cv_bridge.h> #include <message_filters/subscriber.h> #include <message_filters/sync_policies/approximate_time.h> #include <message_filters/time_synchronizer.h> #include <ros/ros.h> #include <opencv2/core/core.hpp> #include <opencv2/imgproc/imgproc.hpp> #include "../../../include/System.h" #include "ViewerAR.h" using namespace std; ORB_SLAM3::ViewerAR viewerAR; bool bRGB = true; cv::Mat K; cv::Mat DistCoef; class ImageGrabber { public: ImageGrabber(ORB_SLAM3::System* pSLAM) : mpSLAM(pSLAM) { } void GrabRGBD(const sensor_msgs::ImageConstPtr& msgRGB, const sensor_msgs::ImageConstPtr& msgD); ORB_SLAM3::System* mpSLAM; }; int main(int argc, char** argv) { ros::init(argc, argv, "Mono"); ros::start(); if (argc != 3) { cerr << endl << "Usage: rosrun ORB_SLAM3 RGBD path_to_vocabulary path_to_settings" << endl; ros::shutdown(); return 1; } // Create SLAM system. It initializes all system threads and gets ready to process frames. ORB_SLAM3::System SLAM(argv[1], argv[2], ORB_SLAM3::System::RGBD, false); cout << endl << endl; cout << "-----------------------" << endl; cout << "Augmented Reality Demo" << endl; cout << "1) Translate the camera to initialize SLAM." << endl; cout << "2) Look at a planar region and translate the camera." << endl; cout << "3) Press Insert Cube to place a virtual cube in the plane. " << endl; cout << endl; cout << "You can place several cubes in different planes." << endl; cout << "-----------------------" << endl; cout << endl; viewerAR.SetSLAM(&SLAM); ImageGrabber igb(&SLAM); ros::NodeHandle nh; // ros::Subscriber sub = nh.subscribe("/camera/image_raw", 1, &ImageGrabber::GrabRGBD, &igb); message_filters::Subscriber rgb_sub(nh, "/camera/rgb/image_color", 1); message_filters::Subscriber depth_sub(nh, "/camera/depth/image", 1); typedef message_filters::sync_policies::ApproximateTime sync_pol; message_filters::Synchronizer sync(sync_pol(10), rgb_sub, depth_sub); sync.registerCallback(boost::bind(&ImageGrabber::GrabRGBD, &igb, _1, _2)); cv::FileStorage fSettings(argv[2], cv::FileStorage::READ); bRGB = static_cast((int)fSettings["Camera.RGB"]); float fps = fSettings["Camera.fps"]; viewerAR.SetFPS(fps); float fx = fSettings["Camera.fx"]; float fy = fSettings["Camera.fy"]; float cx = fSettings["Camera.cx"]; float cy = fSettings["Camera.cy"]; viewerAR.SetCameraCalibration(fx, fy, cx, cy); K = cv::Mat::eye(3, 3, CV_32F); K.at(0, 0) = fx; K.at(1, 1) = fy; K.at(0, 2) = cx; K.at(1, 2) = cy; DistCoef = cv::Mat::zeros(4, 1, CV_32F); DistCoef.at(0) = fSettings["Camera.k1"]; DistCoef.at(1) = fSettings["Camera.k2"]; DistCoef.at(2) = fSettings["Camera.p1"]; DistCoef.at(3) = fSettings["Camera.p2"]; const float k3 = fSettings["Camera.k3"]; if (k3 != 0) { DistCoef.resize(5); DistCoef.at(4) = k3; } thread tViewer = thread(&ORB_SLAM3::ViewerAR::Run, &viewerAR); ros::spin(); // Stop all threads SLAM.Shutdown(); // Save camera trajectory SLAM.SaveKeyFrameTrajectoryTUM("KeyFrameTrajectory.txt"); ros::shutdown(); return 0; } void ImageGrabber::GrabRGBD(const sensor_msgs::ImageConstPtr& msgRGB, const sensor_msgs::ImageConstPtr& msgD) { // Copy the ros image message to cv::Mat. cv_bridge::CvImageConstPtr cv_ptrRGB; try { cv_ptrRGB = cv_bridge::toCvShare(msgRGB); } catch (cv_bridge::Exception& e) { ROS_ERROR("cv_bridge exception: %s", e.what()); return; } cv_bridge::CvImageConstPtr cv_ptrD; try { cv_ptrD = cv_bridge::toCvShare(msgD); } catch (cv_bridge::Exception& e) { ROS_ERROR("cv_bridge exception: %s", e.what()); return; } cv::Mat im = cv_ptrRGB->image.clone(); cv::Mat imu; cv::Mat Tcw = mpSLAM->TrackRGBD(cv_ptrRGB->image, cv_ptrD->image, cv_ptrRGB->header.stamp.toSec()); int state = mpSLAM->GetTrackingState(); vector vMPs = mpSLAM->GetTrackedMapPoints(); vector vKeys = mpSLAM->GetTrackedKeyPointsUn(); cv::undistort(im, imu, K, DistCoef); if (bRGB) viewerAR.SetImagePose(imu, Tcw, state, vKeys, vMPs); else { cv::cvtColor(imu, imu, CV_RGB2BGR); viewerAR.SetImagePose(imu, Tcw, state, vKeys, vMPs); } } ``` - RGBD AR Demo  ## USB camera ```sh Augmented Reality Demo 1) Translate the camera to initialize SLAM. 2) Look at a planar region and translate the camera. 3) Press Insert Cube to place a virtual cube in the plane. ```
